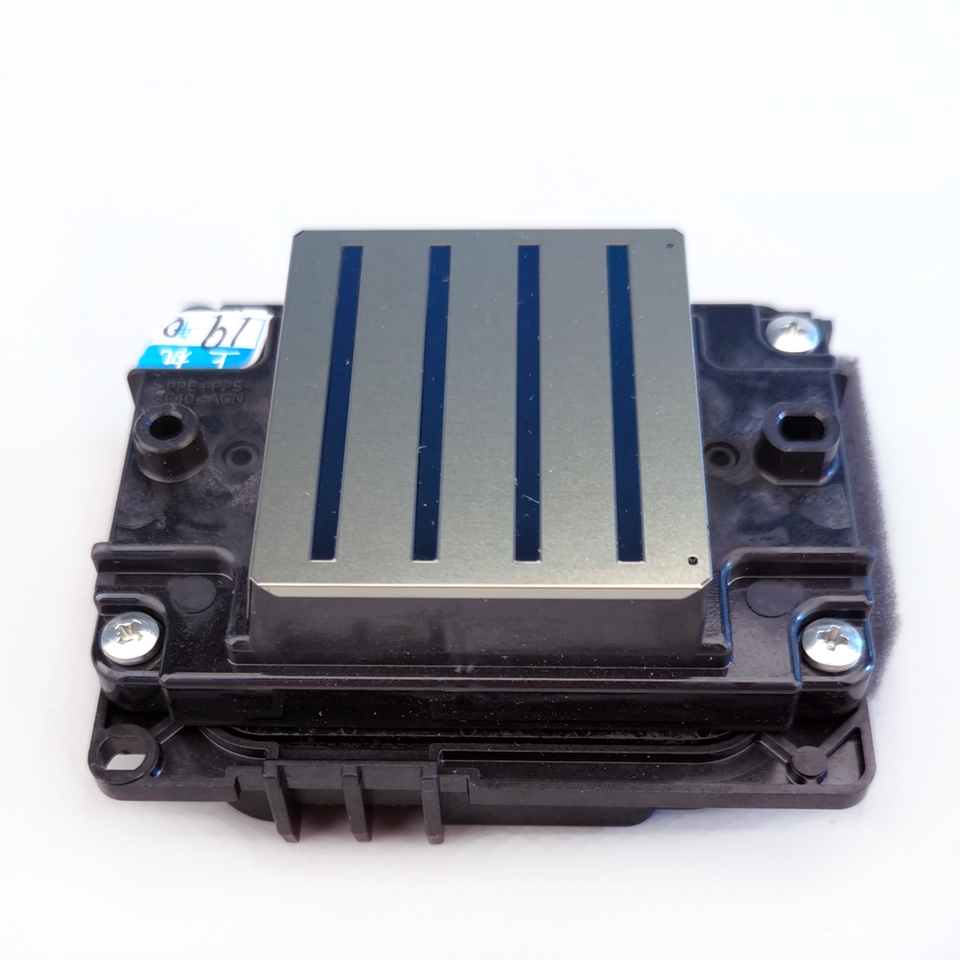

The Epson 4720 is hot using print head on the market, also known as the EPS3200 printhead.At the same time, some people also call 5113 print head as EPS3200 print head.

4720 EPS3200 parameters:

1. four pairs and Eight columns, 4 colors print head

2. Each column has 400 nozzles

3, Totally 3200 nozzles per print head.

The technical parameters of the 4720 print head are basically the same as the 5113 print head.

Differences:

Epson 5113 can only print water-based ink;

Epson 4720 is a corrosion-resistant nozzle, suitable for water-based ink, oil, solvents, UV, paint, heat sublimation, etc. , is a multi-purpose print head.

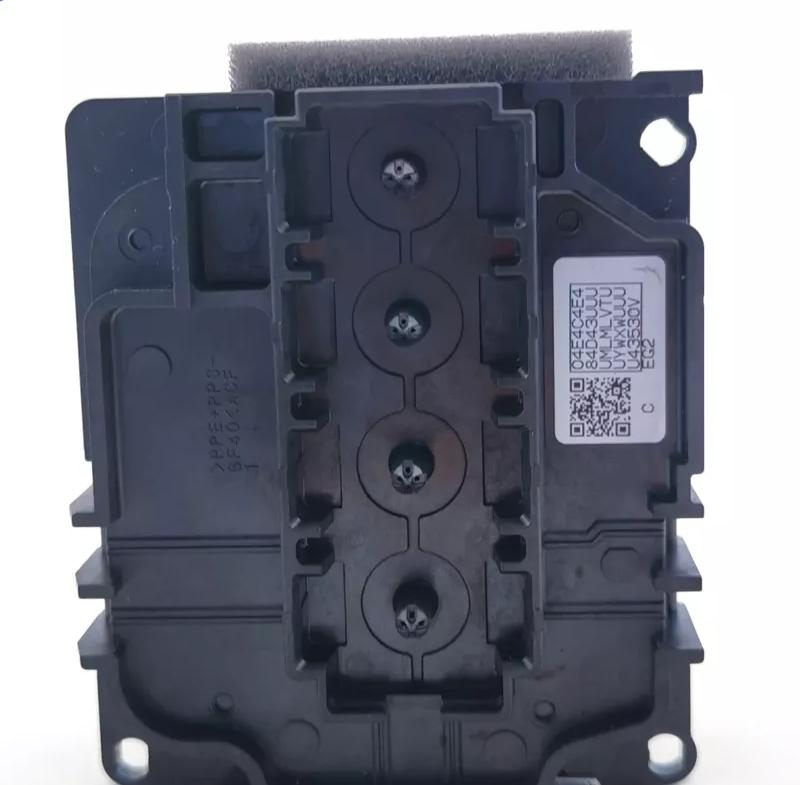

The back of the original Epson 4720 print head is improved compared to the 5113 print head, and it is convenient to use the plug-in style ink damper.

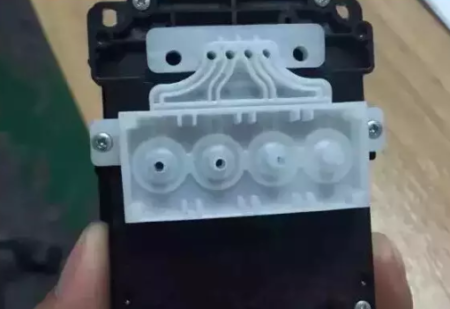

5113 print head(Damper connector)                            4720 print head

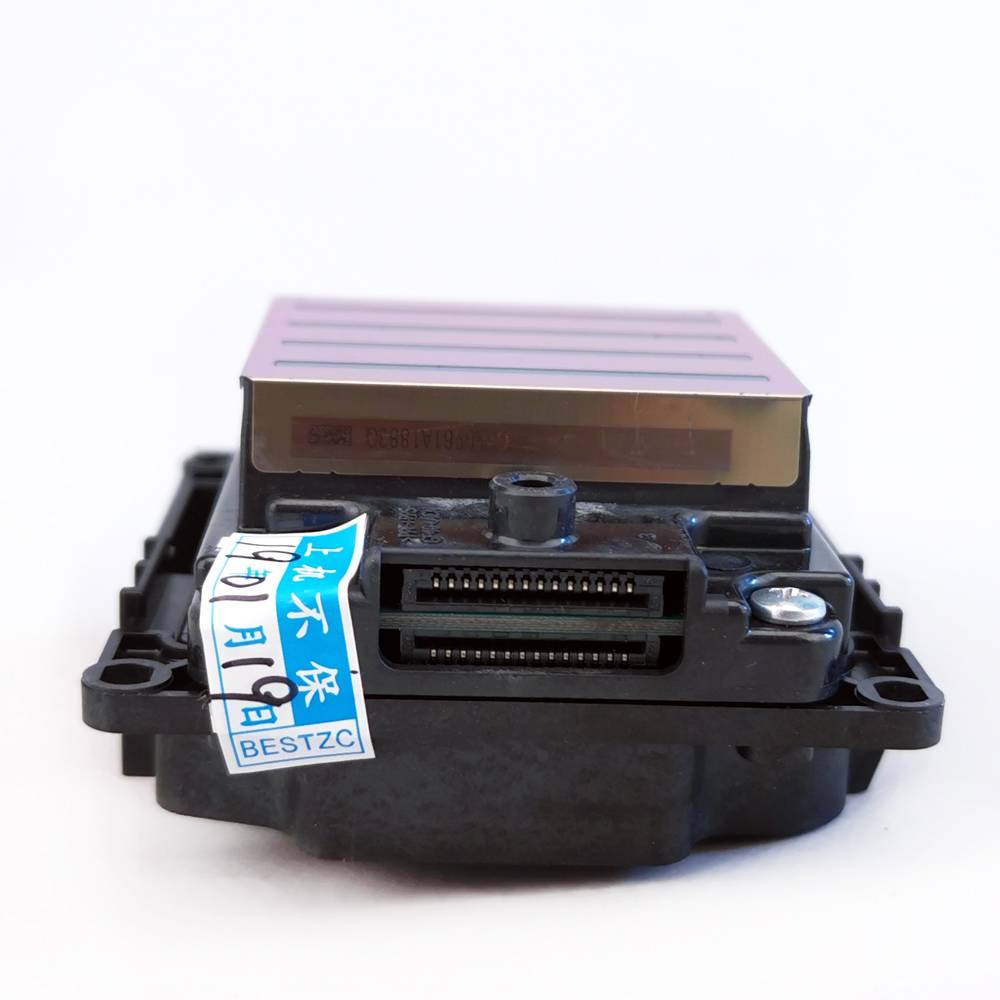

The Epson 4720 connector has 2 less pins.  compare to the Epson 5113.

We can consider the Epson 4720 print head as an encrypted version of the 5113 print head. In fact, the 4720 print head currently uses an existing 5113 control board plus a decryption card to use the 4720 print head on market.

The existing 5113 print head machine can also use a decryption card to use the Epson 4720 print head.

Epson 4720 main features:

1. Number of nozzles: the Epson 4720 has four pairs and eight columns of nozzles, a single column have 400 holes, and a total of 3,200 nozzles. That’s a lot more than the Epson DX5 with only 1,440 nozzles, and as many as the Epson 5113.

2. Nozzle width: The effective width of the 4720 nozzle is 1.3 inches, which is at least 30% wider than Epson’s previous DX5 and DX7 heads; the same width as the Epson 5113 print head.

3, Speed performance: The digital inkjet machine with 4720 print head can realize 3PASS high-speed printing, the printing speed of single print head machine can reach 30 square meters per hour, same as 5113;

4. Epson 4720 nozzle is a corrosion-resistant nozzle, applicable to water-based ink, oil, solvents, UV, paint, thermal sublimation, etc. , is a multi-purpose nozzle. The possibilities are endless.
