“which printhead should I use?”

Published by September 22,2022



 Why is this question so common? Most likely, it is a combination of a large number of options to choose from and a lack of resources to help explain the differences between them. While we can’t do anything about the number of choices, we will explain some of the key factors to think about to help narrow them down. We’ll focus on design, not on supplier. That means we’ll talk about universal considerations such as speed, resolution, frequency, and ink type.

TARGET FEATURE SIZE

The first thing you should think about is what you want the print to look like. Just like the inks you’re hopefully also thinking about, this is set first and foremost by the application. If you are printing a sell by date on a carton of milk, this has a different desired appearance than if you are printing a billboard, or if you are printing a layer of topography on a piece of composite to make it look like wood. Although there are many aspects to the appearance of a print, the factor that is important for deciding what printhead you want to use is the resolution.

Resolution is expressed in DPI, or dot positions per inch. The higher the resolution, the more printed drops there are per inch, and also the smaller the drops are. Determining the resolution that your application demands is based on many things. Take viewing distance for example. Past a certain distance, the viewer cannot distinguish the difference between a 72dpi image and a 1200dpi image, so printing in higher resolution requires unnecessary time, money, and complexity. The substrate also plays a role in determining what resolution is necessary. The difference between 100 dpi and 1000 dpi is much more apparent on photo paper than a carpet.epson printer parts

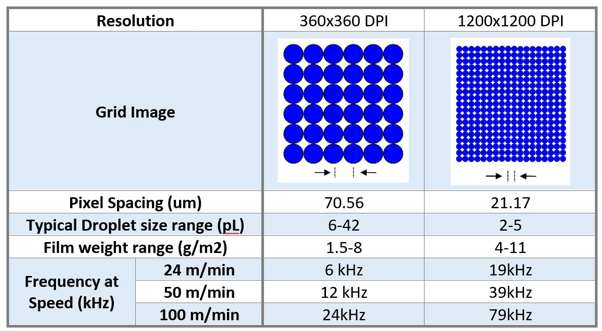

Once you have determined the desired resolution, based on testing, industry comparisons, or other means, this means that you can calculate the size of a dot. If there are 360 dots per inch, that means each dot is 1/360 inches in diameter (70.56 microns). Once you know the size of the dot you need, the next step is to determine the volume of a drop that will produce a dot of that size. Most print head manufacturers scale the drop size to the intended resolution making assumptions on the likely amount of ink spread to enable the substrate to be covered. The assumptions on the drop volumes required at each resolution are highly dependent on how much spread there is, which is a property of the ink relative to the surface. This is easier to explain if we consider 1 pass only, as in the table which shows some key attribute of heads printing at two popular resolutions used in label printing 10 years ago and now.


From here, you have estimated the drop volume that is needed to get the print that you want. Luckily, printhead manufacturers specify the typical drop volumes that a printhead will produce, so this should help narrow down the choices from the start.

PRINT SPEED

The next step is to determine how fast the various printheads you are considering can produce images of that resolution and decide if that is acceptable for your application. The way to do this is by comparing the frequency, or number of drops per second, that a printhead can produce – another specification provided by the manufacturer. For inkjet printheads, this is typically on the order of kHz, or thousands of drops per second. By multiplying the number of drops you need per inch (resolution) by the number of drops the head can fire per second (the frequency), you can calculate the maximum speed that you can move the substrate under the printhead. We’ve calculated some drop frequencies as a function of speed in the above figure. Looking at those values, you can see that printing at 1200DPI means you need to eject drops 2-3 times faster. This limits the printheads that you can use to ones that meet the higher resolution and frequency specs, else you have to decrease the speed that you are moving the substrate at.

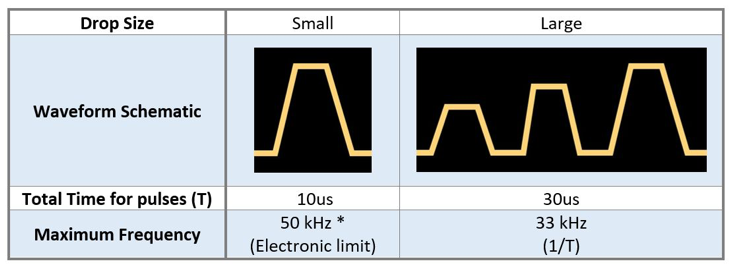

Be careful though. To improve the print quality by balancing individual dot visibility with the ability to get coverage, print head makers introduced greyscale heads. These printheads can produce drops of multiple volumes depending on the waveform applied to them. This is superb invention, but it is important to remember that the different drop sizes need different amounts of time to fire as shown very simply below.


Why does this matter? The maximum print frequency on a printhead specification is often specified for 1-pulse (binary), whilst the maximum volume is for multi-pulse (greyscale). The maximum frequency for the largest drop size is usually lower; making big drops at high frequency is not going to happen.

With this in mind, once you have determined the speed and frequency you need to print at, you should be able to narrow down the printheads to choose from even more.

WHAT TO DO IF THE PRINTHEAD YOU NEED DOESN’T EXIST

Let’s say that you determine that you need 1200dpi resolution and want to print at 10 m/s, so you calculate that you need to print at a frequency of 472 kHz. there is no printhead that can do the job. There are still techniques that you can use to accomplish what you need without having to invent your own printhead.

The first trick is that you are not limited to only using a single printhead. By putting two printheads in the print process, one after another, you are able to double your throughput. In this case, you could either have each printhead print at 600 dpi and 472 kHz, or you could have each printhead print at 1200 dpi and 236 kHz. Epson DX6 TX800

By stacking multiple rows of printheads together, you can reduce the individual required throughput of each head to get to achievable levels.

Another technique to use to your advantage is the concept of “apparent resolution”. The basic idea is that a grayscale inkjet print (using different drop sizes) is visually equivalent to a higher resolution print made up of uniform drops.
