Ricoh gen5 print head for Mimaki JFX200 printer original print head MP-M022625

Ricoh gen5 print head for Mimaki JFX200 printer original print head MP-M022625.This printhead GEN5 is suitable for Mimaki JFX200-2513 printers. It has two and four colour support, 8 levels of grayscale and up to 600 npi nozzle density. This is the origina

Product Specification:
  • Dimensions : 89 x 25 x 69 mm (excluding cables)
  • Head materials : SST, Nickel alloy and Epoxy Adhesive
  • Nozzle plate surface : Coated SST
  • Number of nozzles : 4 x 320 nozzles
  • Nozzle spacing : 0.1693 mm
  • Nozzle density :
Inquiry Now
Product Details

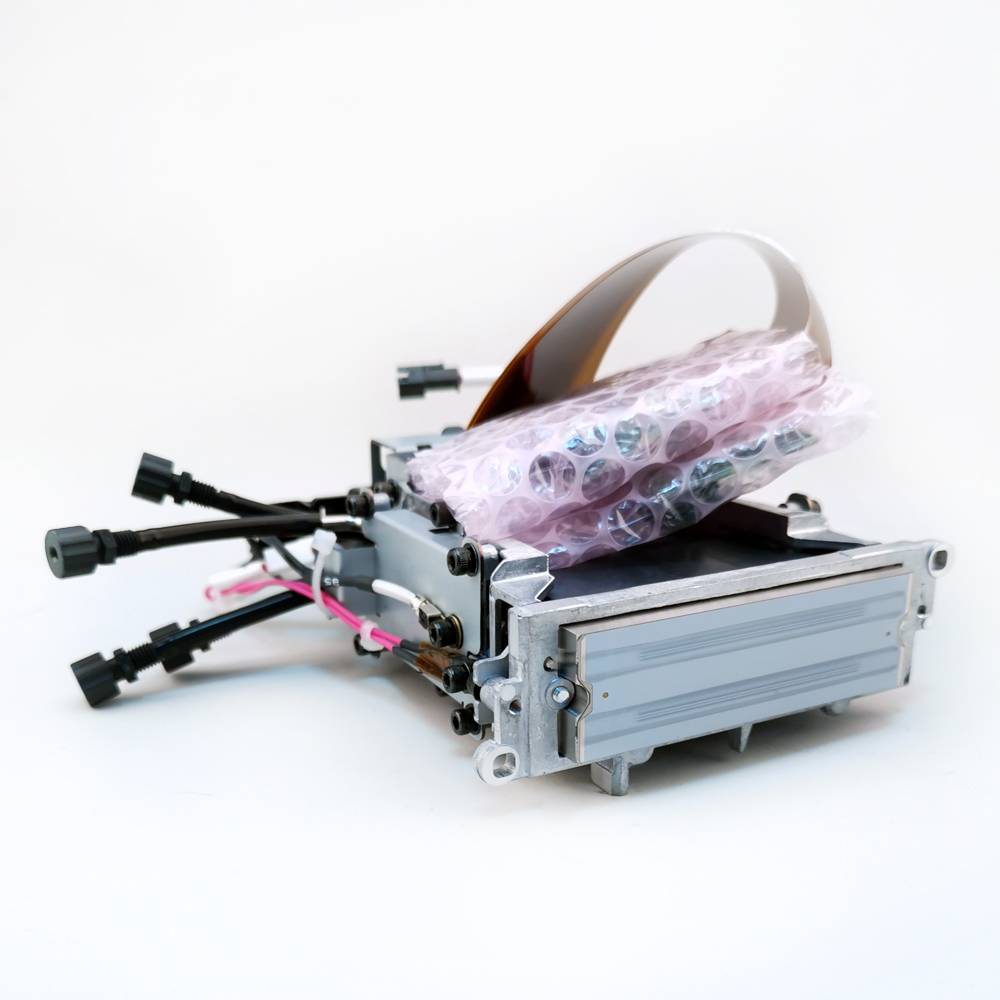

Ricoh gen5 print head for Mimaki JFX200 printer original print head MP-M022625

Specifications

  • Dimensions: 89 x 25 x 69 mm (excluding cables)
  • Head materials: SST, Nickel alloy and Epoxy Adhesive
  • Nozzle plate surface: Coated SST
  • Number of nozzles: 4 x 320 nozzles
  • Nozzle spacing: 0.1693 mm
  • Nozzle density: up to 600 npi
  • Piezo yype: D33 Stacked PZT
  • Temperature control: Integrated Heater and Thermistor
  • Operator temperature range: Up to 80° C
  • Native drop volume: 7 pl
  • Drop volume range: 7 - 35 pl
  • Drop velocity: 7 m/s
  • Jetting frequency: Up to 60 kHZ
  • Life: 100 billion actuations per nozzle





 You May Also Like?

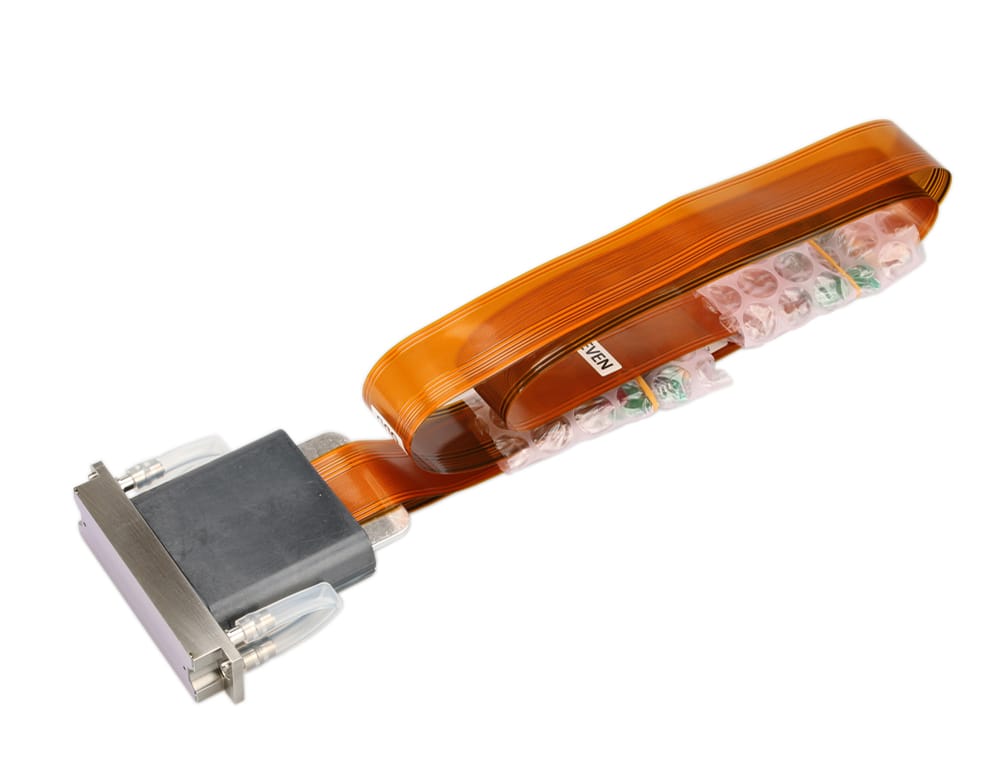

RICOH GEN5Ricoh gen5 SWJ320

 About Payment and Delivery

Have international transportation methods, Fedex, DHL, TNT, UPS, EMS, SF.And the delivery is timely, the time is short, and the speed is fast.

 Why choose us?

1.High standard quality inspection requirements

Five professional production lines, three quality inspections, professional safety, and strict quality assurance.

2.Strong sales team and cargo distribution capabilities

Six foreign trade sales teams, in-depth understanding of the quotation for different regions.

3.Rich customer case

Our customers are all over the world, including factories, agents, terminals, etc.

We also often go abroad to participate in EXPO,Brazil(Future Print),Mexico(Fespa),Germany(Fespa),Russia, Peru, United States, Turkey,etc.

4.Professional service team

24 hours online, promptly reply to inquiry.

Will immediately ship and ship orders, while solving other customer problems.

Regularly understand customers, pay attention to customer feedback, and solve customer problems in a timely and effective manner.

 Warehouse Overview



 FAQ

Q: Are you a manufacturer?

A: Yes.We are wide format printer parts manfacturer and print heads supplier.and ink pump is our main product

Q: What's the warranty of pump?

A: Each ink pump has been spot-checked by a superior leader. You are also welcome to visit the company.

Q: What about the delivery time?

A: we accept the T/T transfer, Western Union, PayPal. Within 2-3 workdays after full payment is received.

Q:If you want to know more about digital printer spare parts and use?

A: Please feel free to contact us, we have the complete range of printer spare parts.
