Ricoh

Brand new and original Ricoh gen4 original printhead 7pl

Brand new and original Ricoh gen4 original printhead 7pl    Size 63(W)*63(D)*16.2(H)mm (excluding cables) Head materials SST,Ni & Epoxy adhesive (Direct contact with ink) Head plate s

Product Specification:
  • Brand new and original Ricoh gen4 original printhead 7pl :
  • Brand Name : Ricoh
  • Use : UV flat printer
  • Usage : mimaki printer
  • Payment : TT.Western Union Paypal Ect
  • Place of Origin : Japan
Inquiry Now
Product Details

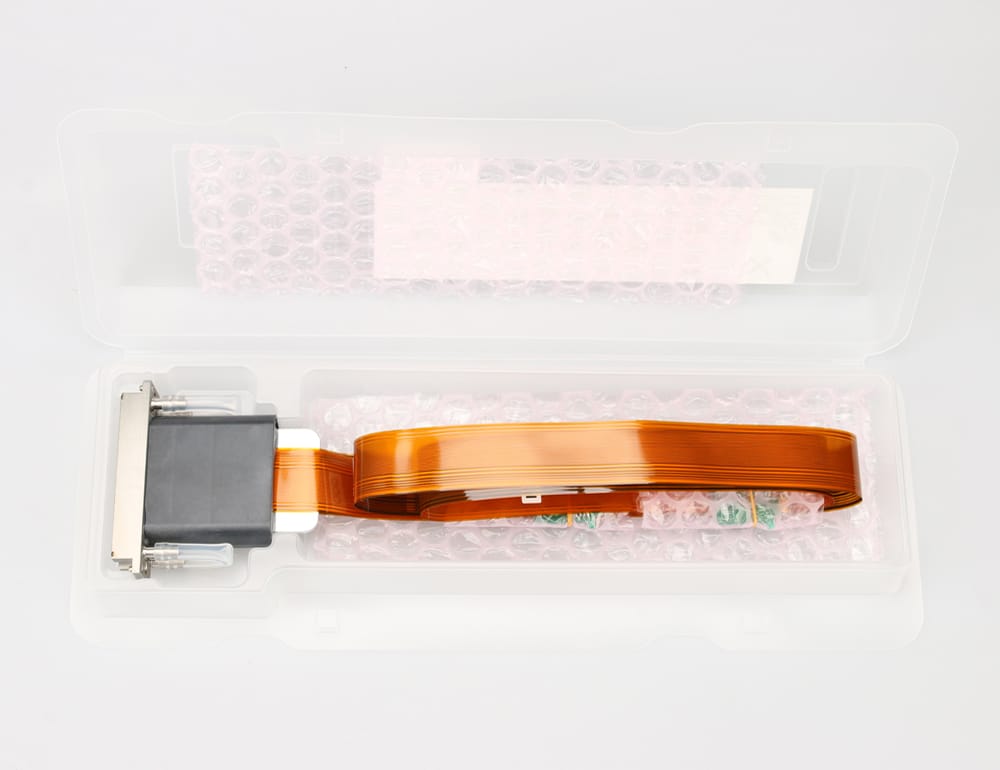

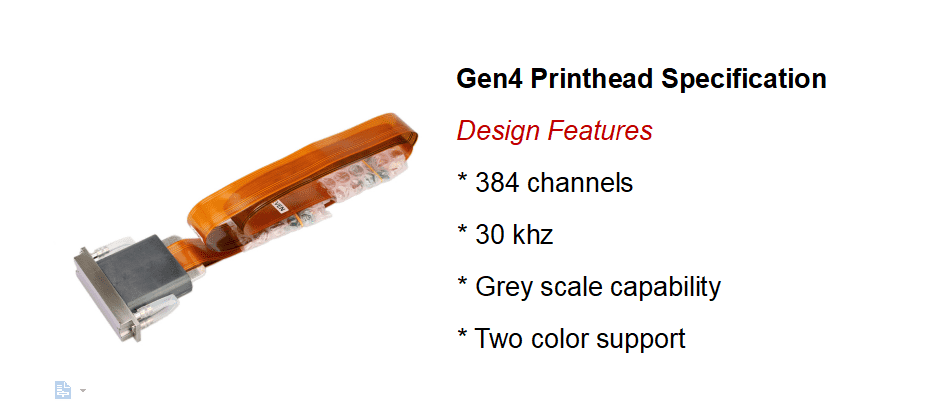

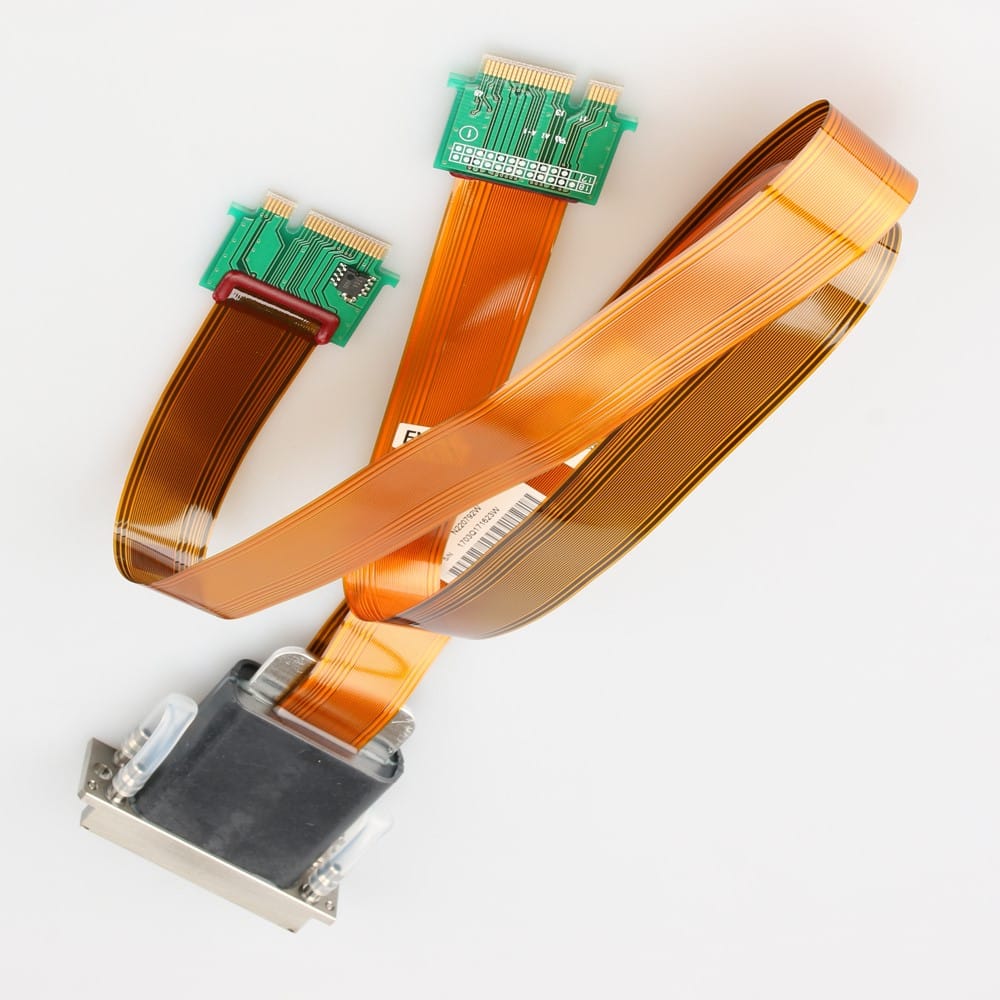

Brand new and original Ricoh gen4 original printhead 7pl



Size 63(W)*63(D)*16.2(H)mm (excluding cables)
Head materials SST,Ni & Epoxy adhesive (Direct contact with ink)
Head plate surface Non-coated SST
Number of head 2*192 channles

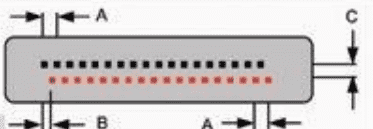

Head spacing

    A:with a row

    B:Row to row offset

   C:Row to row distance

0.1693 mm(1/150'')

0.0846 mm (1/300‘’)

0.5292 mm

Ink inlet port 2x dual ports
Piezo type D33 stacked PTZ
Drop ejection mode Piston pusher with metallic diaphragm plate
Integrature electronics Low-voltage serial to high-voltage parallel
Temperature control Integrated heater and thermistor
Operating temperature range Up to 60°C

Compatible jetting fluids Water base,solvent,oil,UV curable
Viscosity range 10-12 cP(at operating temp.)
Surface tension 28-35 dynes/cm

Native drop volume 7 pico liter
Drop volume eange/variation 5-25 pico-liter with grey-scale ±10%
Drop velocith nomial/variation 8 m/sec/±10%
Crosstalk  10% or less with channels firing
Jet straightness 1 sigma <3.5 milli-radian from head centerline
Operating jetting frequency Native drop:Up to 30kHZ/Gery-scale;Up to 20kHZ
Life 100 billion actuation's per head

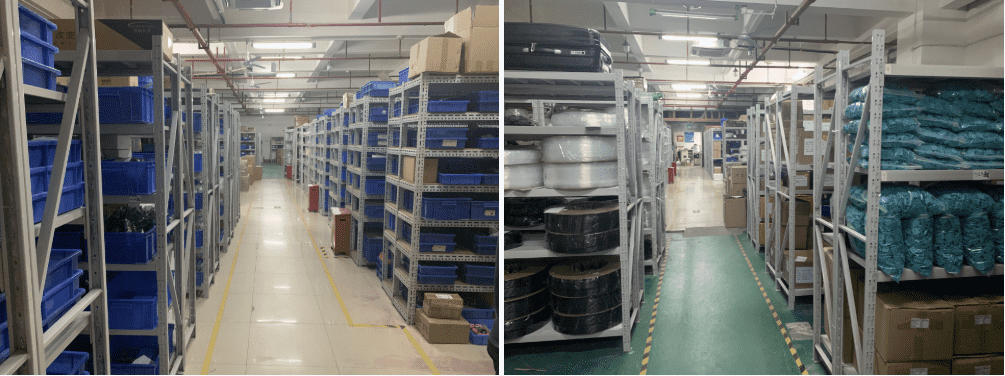

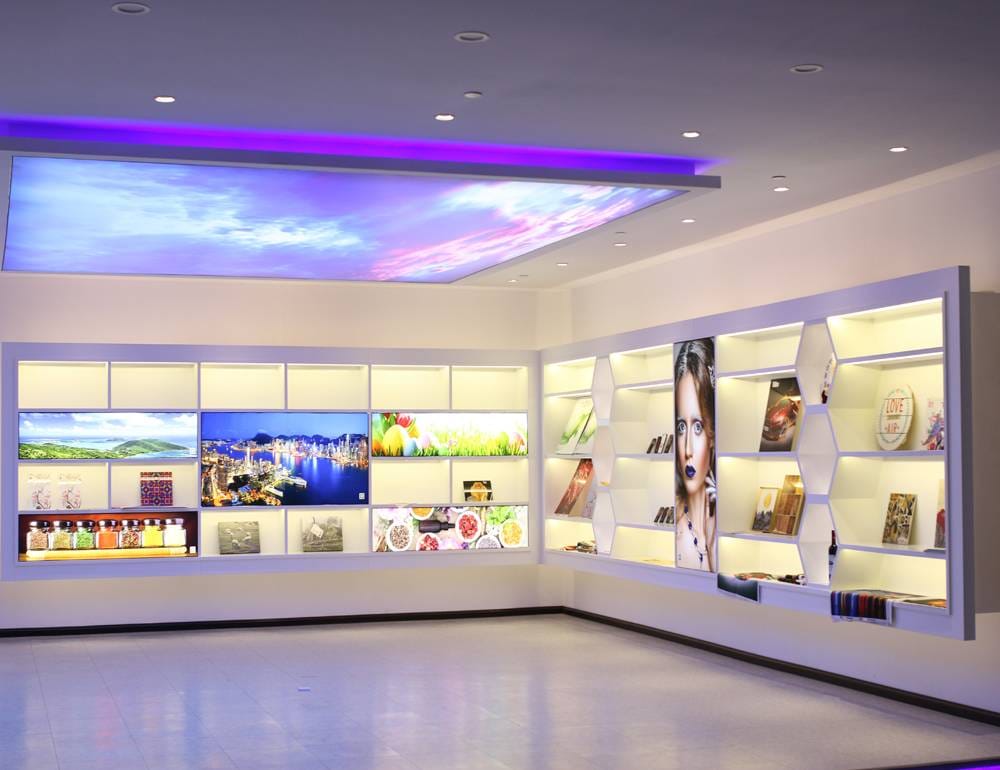

Warehouse and Showroom Overview
